Assembly

Explode Lines

Create Explode Lines in an assembly that will be visible in the drawing

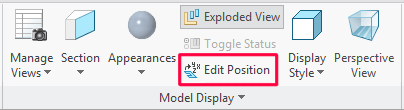

Model Tab > Model Display Section > Edit Position

Explode Lines-01-Explode Lines.PNG

Select Explode Lines Tab

Explode Lines-02-Explode Lines

Select Two References

Explode Lines-03-Select References.PNG

In this case, the axis of the hole and the screw are selected.

Select Apply

Explode Lines-04- Apply.PNG

Offset Lines will appear in the Model Tree

Select the Complete Check-mark.

Explode Lines-06-Complete

Next you will need to Save the changes in the View Manager.

Next to the Exploded View you modified there is a (+). Right-click and Save…

Explode Lines-07-Save-rd

Save Assembly and you are done.
